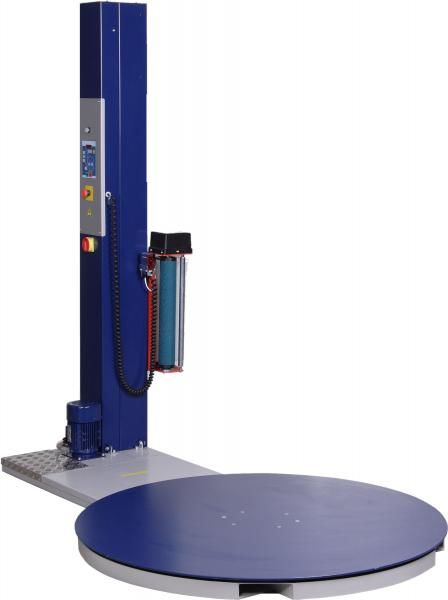

Semi-automatic pallet wrapperWS 15 Economic

Semi-automatic wrapping machines WS are the ideal solution to enhance the capacity, quality, eliminate physical exertion of employees and reduce the cost of packaging materials. This series is suitable for small and medium-sized plants. Machines are easy to operate by a control panel and designed as a low-maintenance equipment. All offered wrapping machines are developed and manufactured by Ekobal (Pragometal) Co. in the Czech Republic. For their construction are used electrical components from renowned European manufacturers.

25pal./hour 2programs 1200kilograms
Request form

Technical information

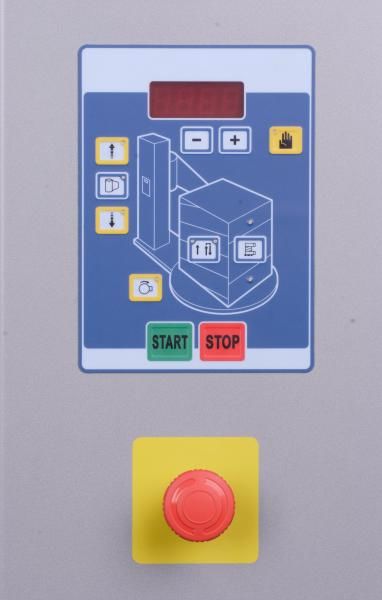

The wrapping machine WS ECONOMIC is a simple semiautomatic machine with very easy operation, Cut-off turnable, equipped with two memories to save and start fully adjustable programs for single and cross wrapping. Possible to save parameters such as: foil tension, wrapping density, turntable speed, a number of turns on the top and bottom of the wrapped pallet. It is characterized by very easy handling and well-arranged operator panel. It is also possible to run the machine in automatic and manual mode.

Application

WS ECONOMIC is used for operations with a small or medium requirement for capacity of wrapped pallets, especially where the main criterion is the equipment cost. Suitable clients are small productions, logistic companies, warehouses etc.

Wrapping capacity (pal./hour): 25
Turntable size(mm): 1500 (EUR pallet)
Number of programs: 2
Max. wrapping height (mm): 2250

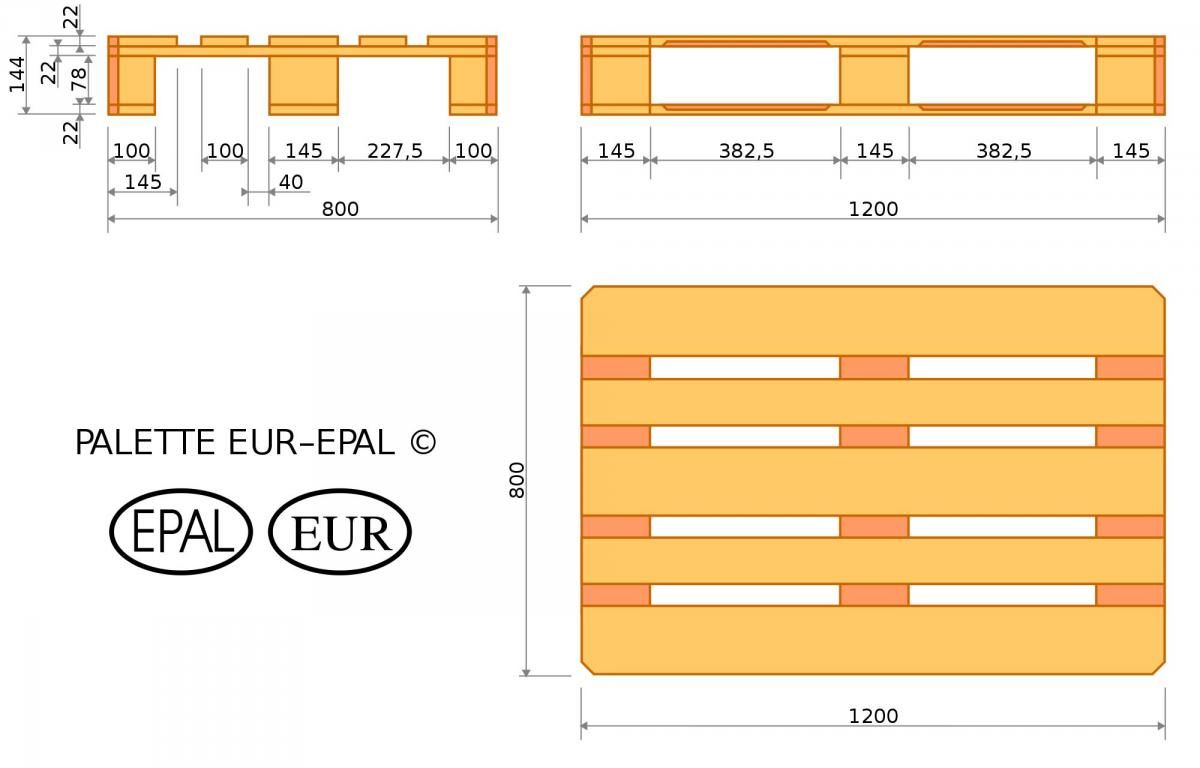

Wrapped pallet size (mm): 1200x800
Pallet height reading: optical
Turntable speed regulation “Soft START“: no or inverter

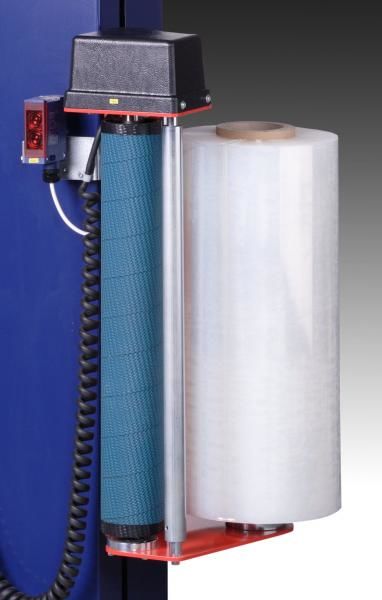

Pre-stretching device: hand brake
Turnable speed (rpm): 10
Max. turntable load (kg): 1200

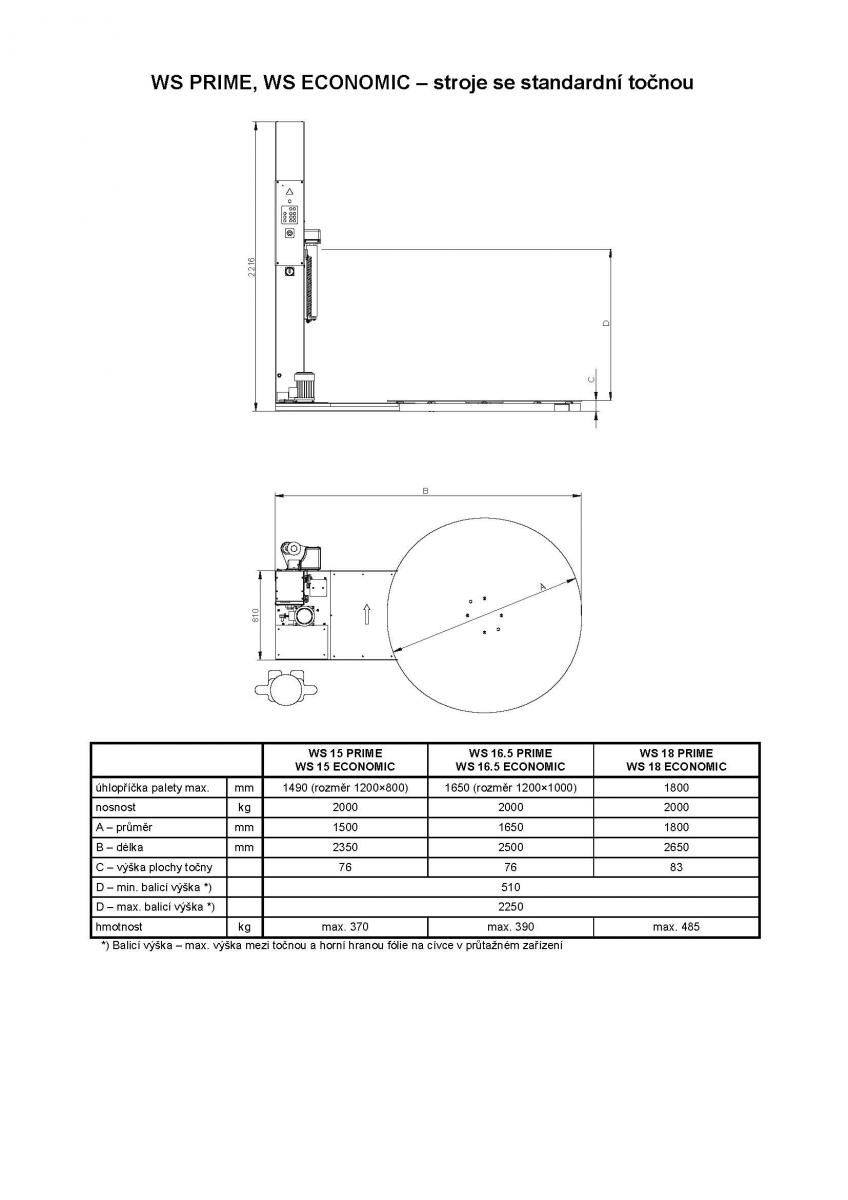

Machine dimensions LxW (mm): 2350x1500
Air pressure (MPa): -
Operational voltage (V): 3x400, 50Hz or 230
Electric input (kVA): 1,5



ACCESSORIES

Optional machine version

Turntable size (mm): 1650 (1000x1200), 1800 (1200x1200)

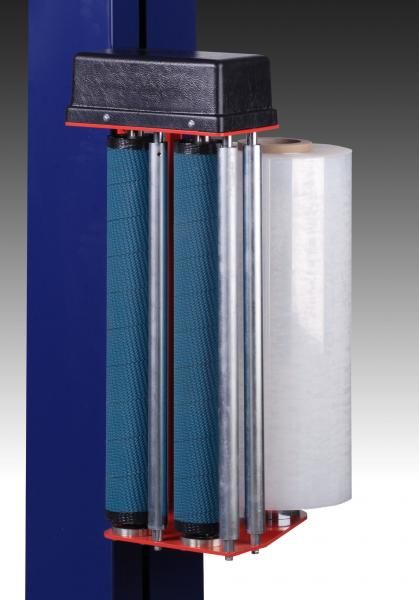

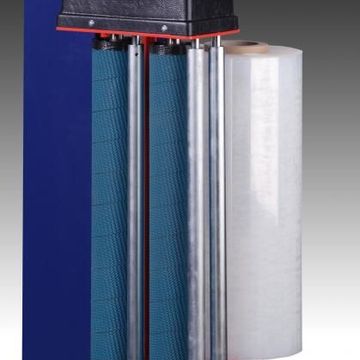

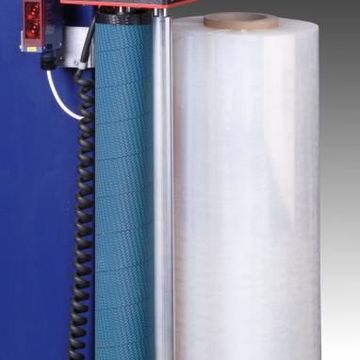

Pre-stretching foil device: mechanical, electromagnetic brake

Accessories

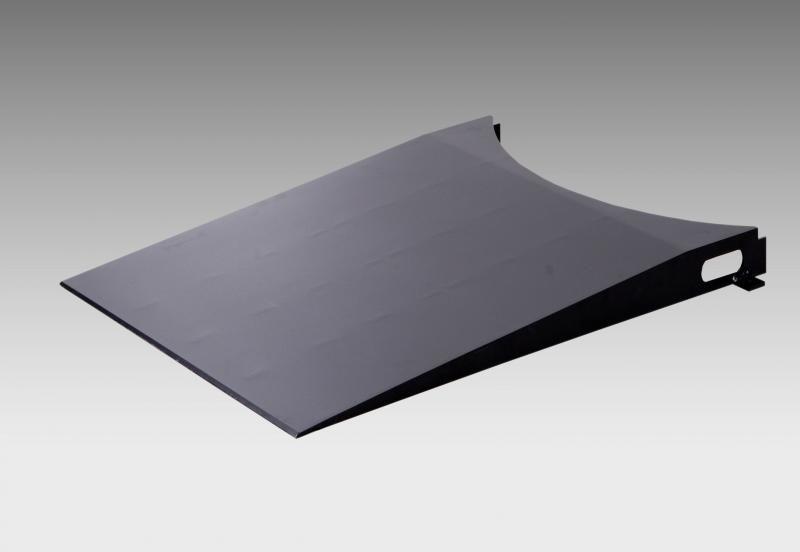

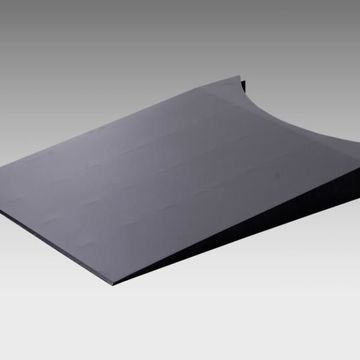

  • Approach ramp - extended 1700mm
  • Turntable with scale (load capacity 1200 kg)
  • Approach ramp for turntable with scale - extended 1700mm

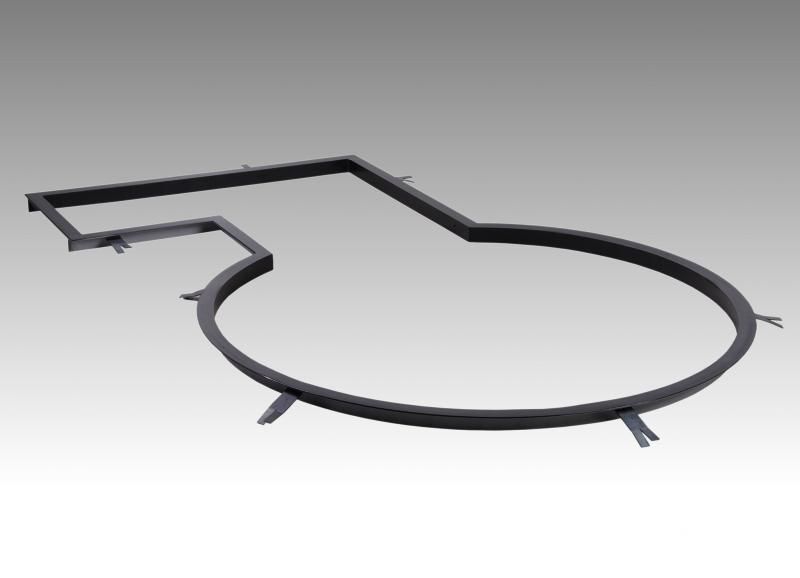

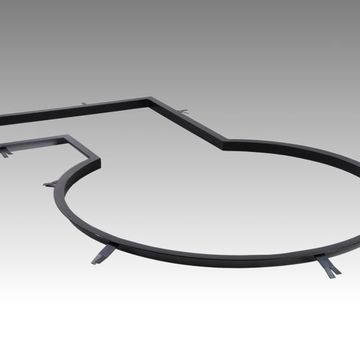

  • Pit frame for machine integration into the floor

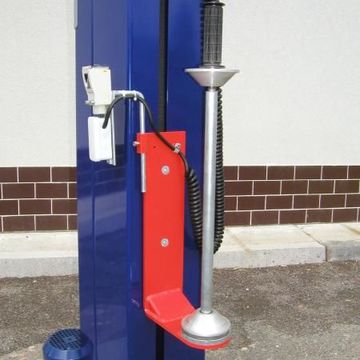

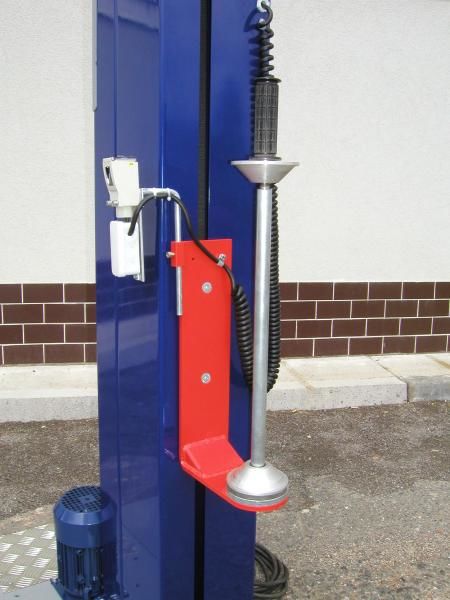

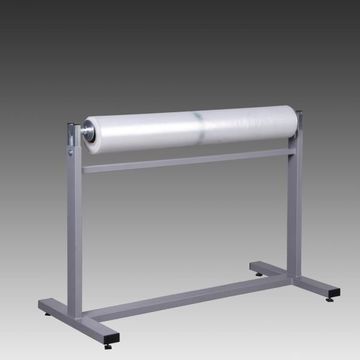

  • Topsheet holder for hand application
  • Non-standard color version
