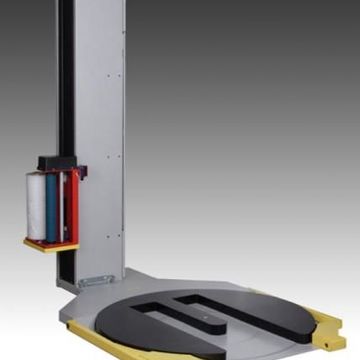

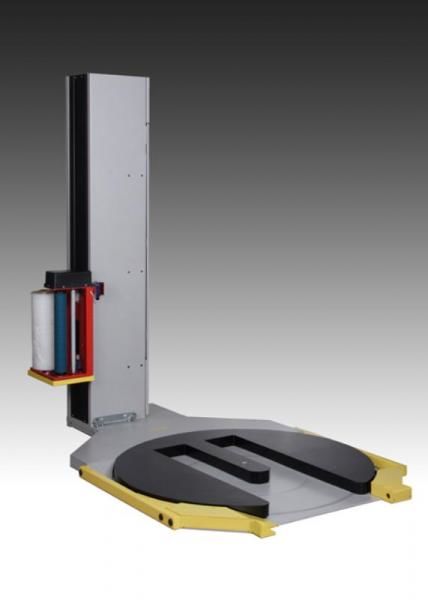

Pallet wrapperWMS 15 Standard

The wrapping machines WMS range is based on a modular solution for wrapping pallets in automatic or manual mode. The machines are suitable for operations from low to medium wrapping capacity with high demands on quality and packaging savings.
All offered wrapping machines from the company EKOBAL are designed and manufactured in the Czech Republic by the parent company Pragometal. For their construction are used important electrical components from renowned European manufacturers.

25pal./hour 6programs 1200kilograms
Request form

Technical information

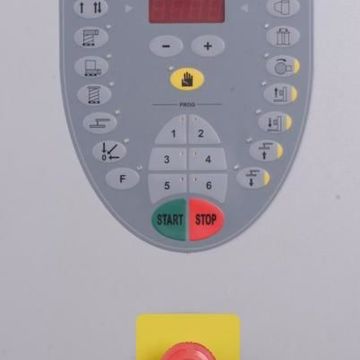

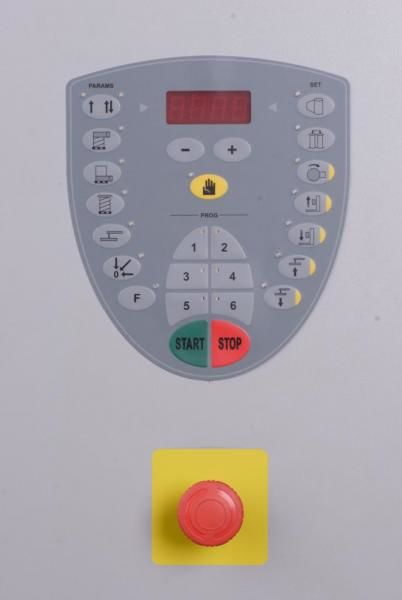

Semi-automatic machine equipped with a digital control system (PLC). The PLC is controlled on LCD display that allows operator to store programs in memory with direct dialing. These programs can set the parameters of wrapping such as: simple or cross-wrapping, foil tension, foil stretching, wrapping density, turntable speed, individually number of turns on the top and bottom of the wrapped goods, topsheet application, top-platen pressure for wrapping of unstable goods (if installed). The machine is equipped with an optical sensor for measuring the height of pallets and oriented turntable stop. WMS can also easily operate in manual mode with the possibility to adjust program settings directly in the packaging cycle.

Application

WMS STANDARD is used for operations with a small or medium requirement for capacity of wrapped pallets with variety of goods heights. Machine ensures accurate compliance with the set wrapping program, which provides a high quality of wrapping with a minimum foil consumption. Suitable clients are small and medium productions, logistic companies, warehouses etc.

Wrapping capacity (pal./hour): 25
Turntable size (mm): 1500 (EUR pallet)
Number of programs: 6
Max. wrapping height (mm): 2430

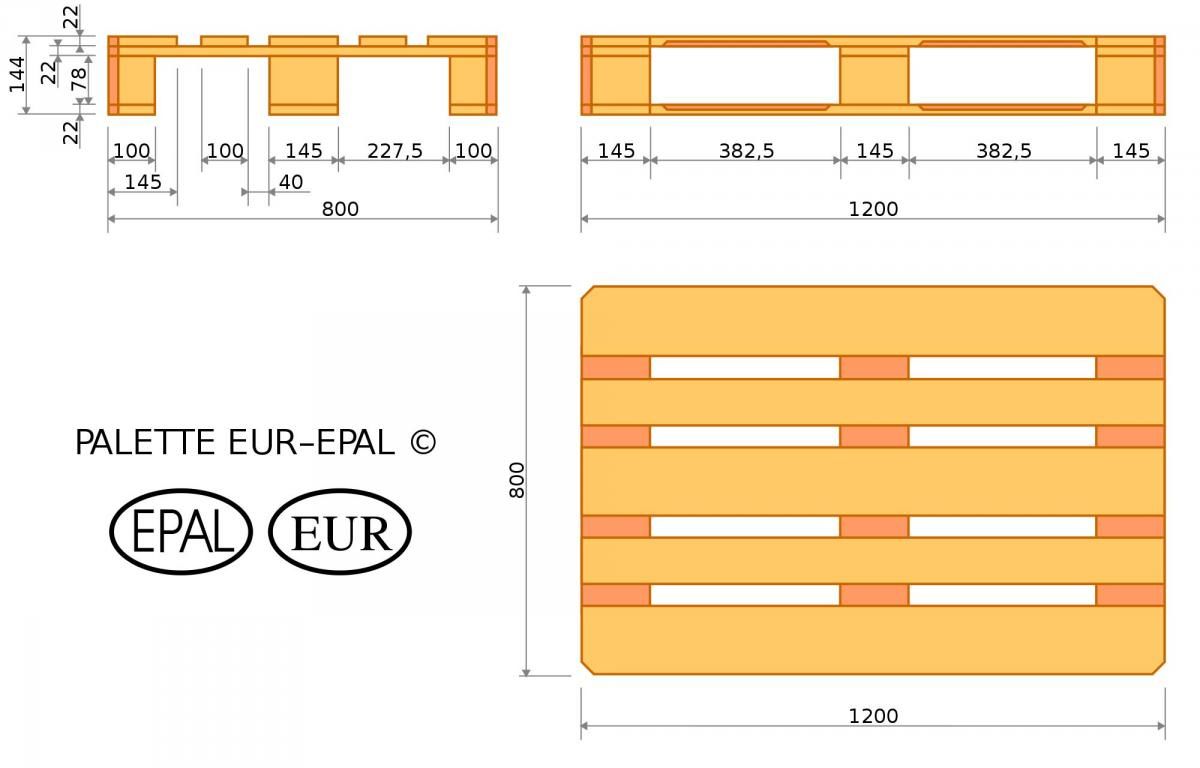

Wrapped pallet size (mm): 1200x800
Pallet height reading: Optical
Turntable speed regulation “Soft START“: no or inverter
Pre-stretching device: electromagnetic brake
Turntable speed (rpm): 10
Max. turntable load (kg): 1200

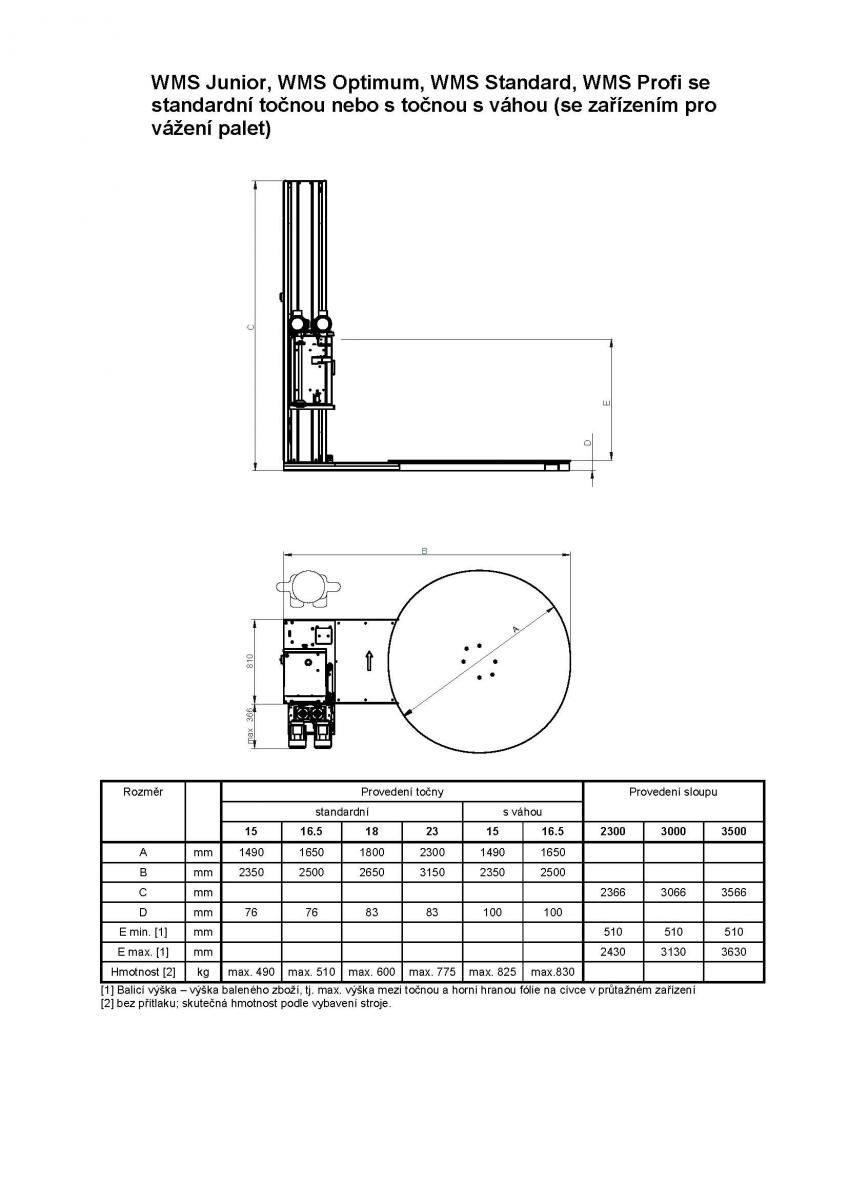

Machine dimensions LxW (mm): 2350x1500
Air pressure (MPa): -
Operational voltage (V): 3x400, 50Hz
Electric input (kVA): 4,3



ACCESSORIES

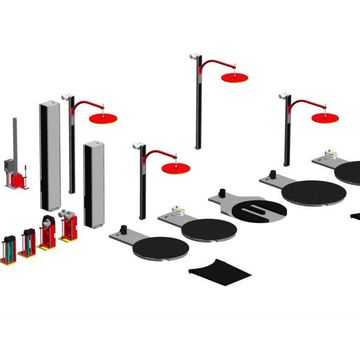

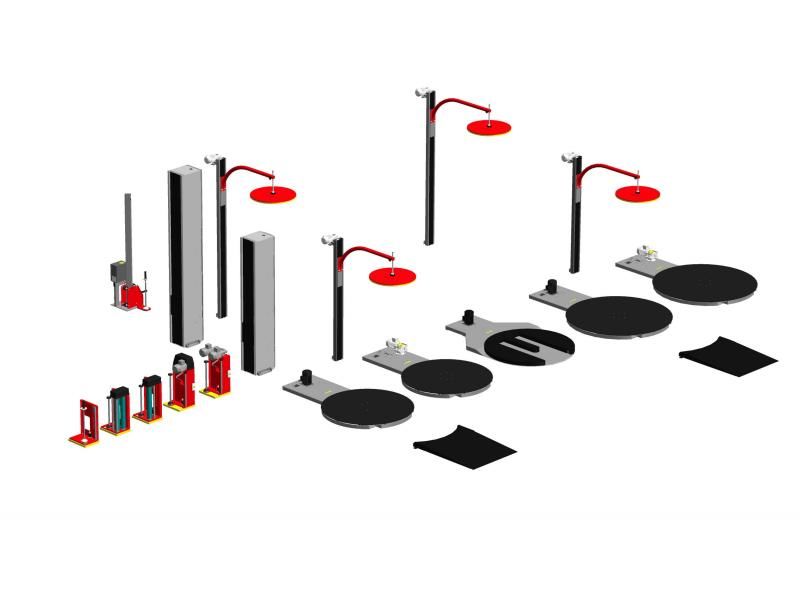

Optional machine version

Turntable size (mm): 1650 (1200x1000), 1800 (1200x1200), 2300
Increased of load capacity (kg): 1500, 2500
Extended column = max. wrapping height (mm): 3130, 3630

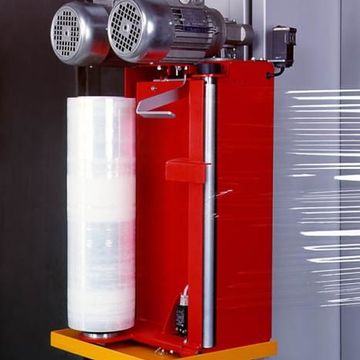

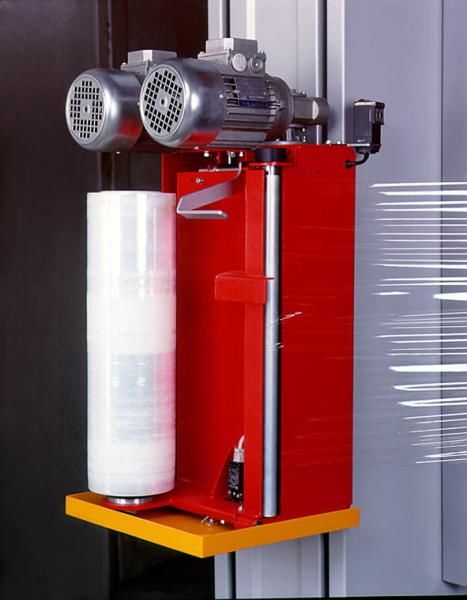

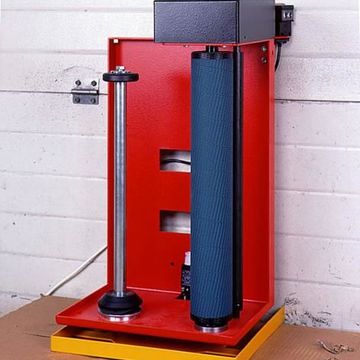

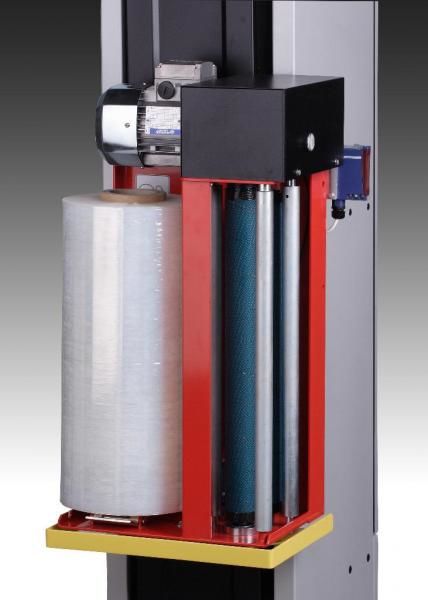

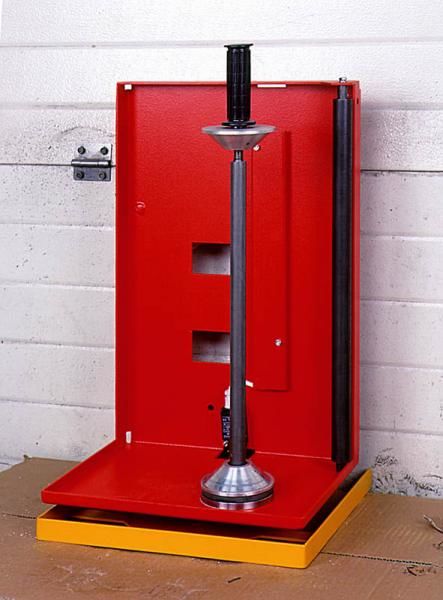

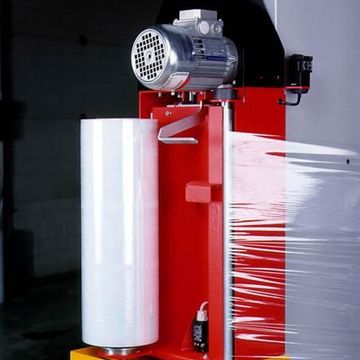

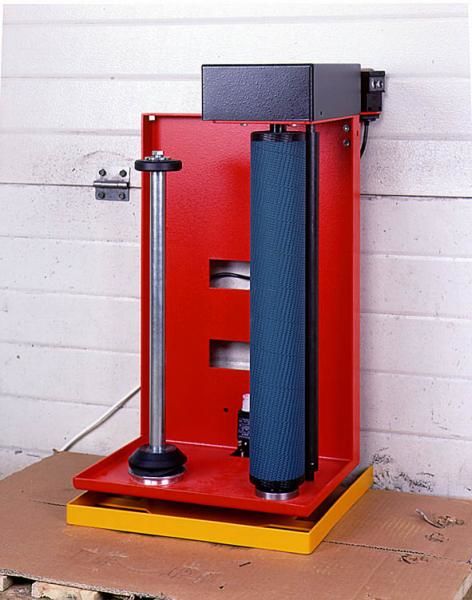

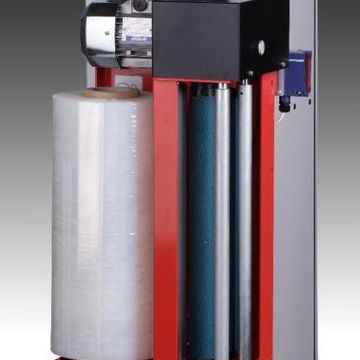

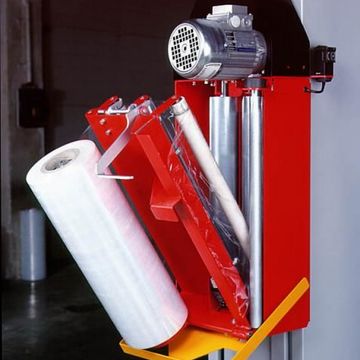

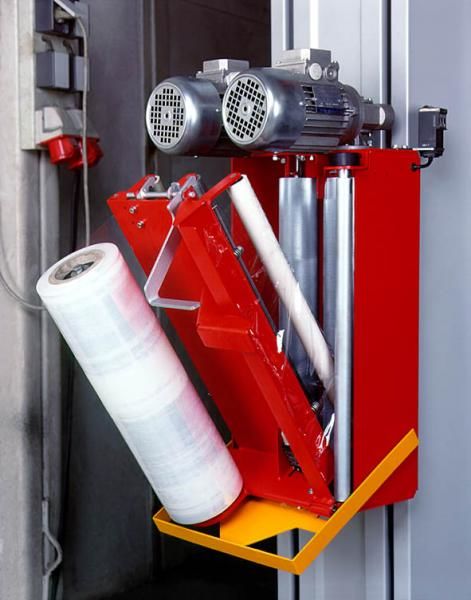

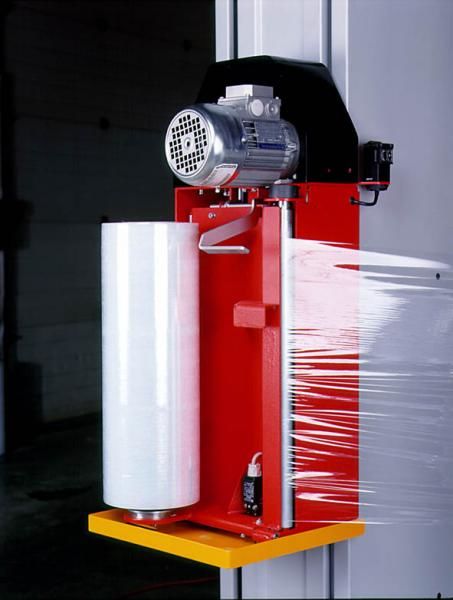

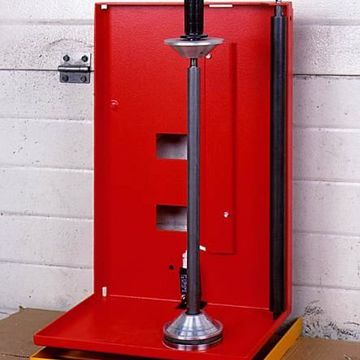

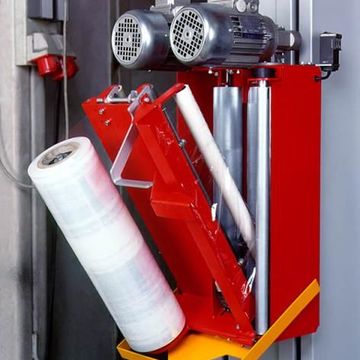

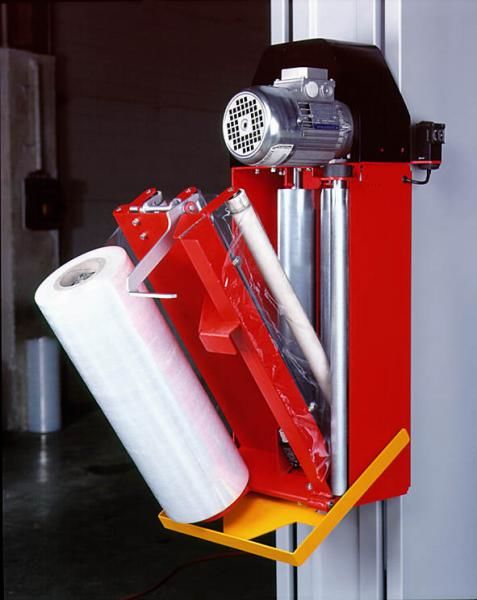

Pre-stretching foil device: mechanical, electromagnetic brake, 1 el. motor controlled Light , 1 el. motor controlled, 2 el. motor controlled

Accessories

  • Regulation of turntable speed = soft start

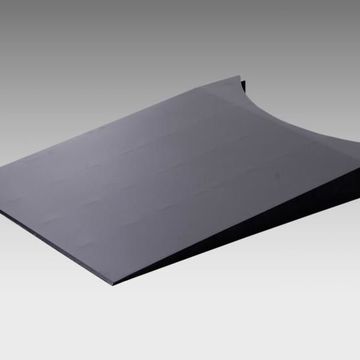

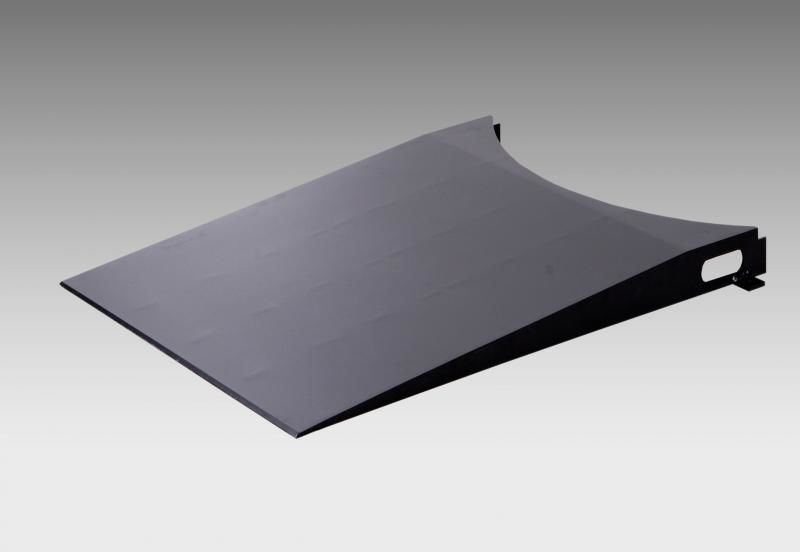

  • Approach ramp - extended 1700mm
  • Turntable with scale (load capacity 1200 kg)
  • Approach ramp for turntable with scale - extended 1700mm

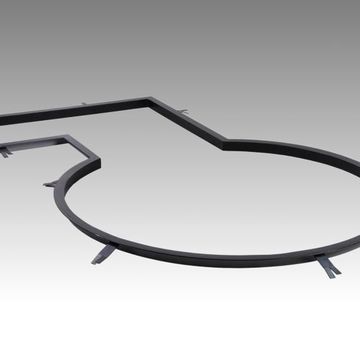

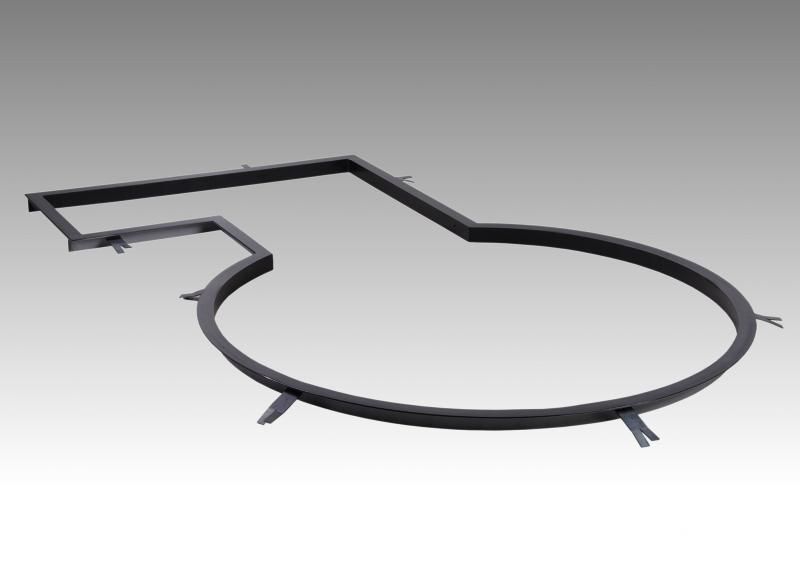

  • Pit frame for machine integration into the floor
  • Automatic foil tearing

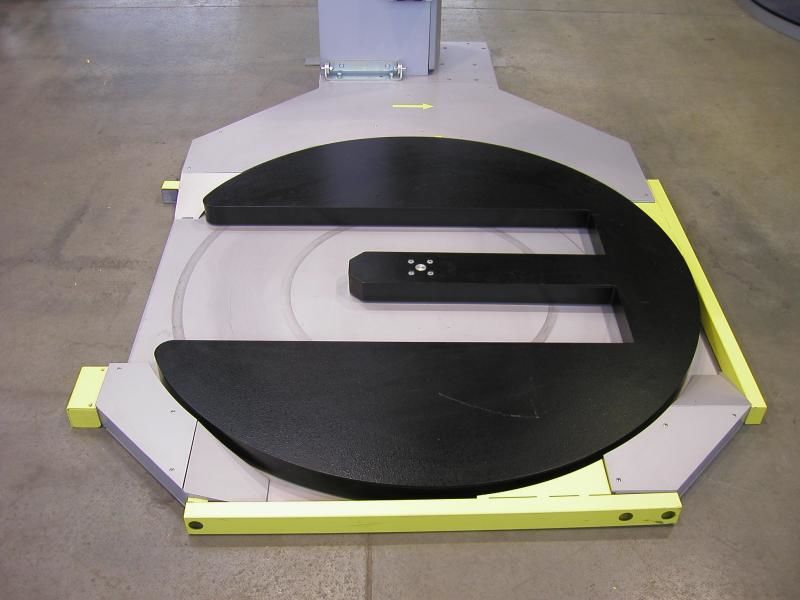

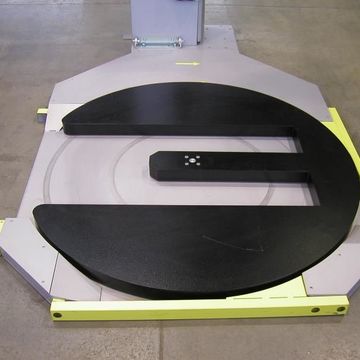

  • Turntable with cut (load capacity 1000 kg)

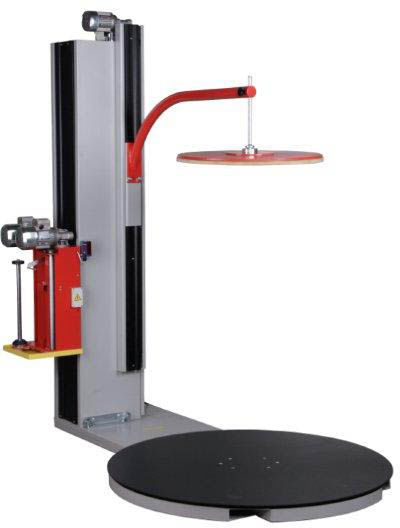

  • Electric top-platen for unstable goods

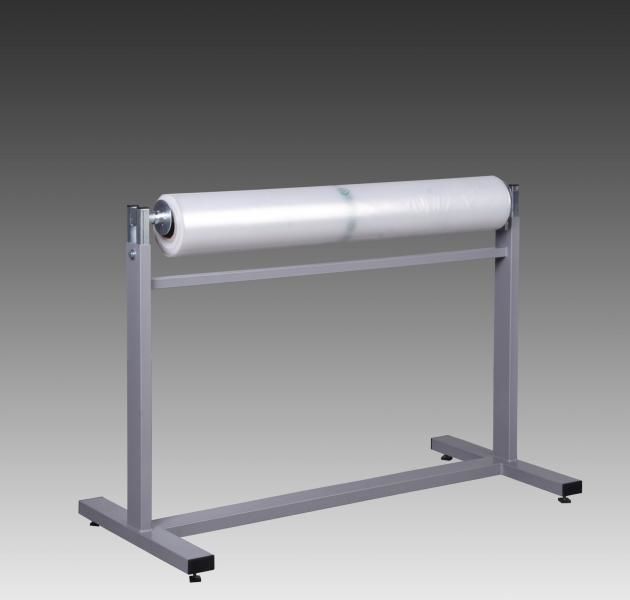

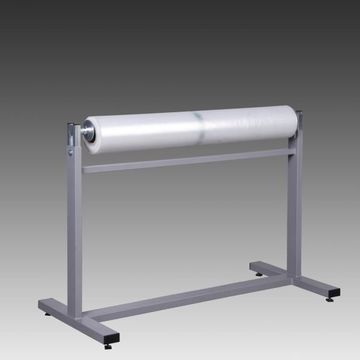

  • Topsheet holder for hand application
  • Non-standard color version
