Pallet wrapperWMS 15 Evident
The wrapping machines WMS range is based on a modular solution for wrapping pallets in automatic or manual mode. The machines are suitable for operations from medium to higher wrapping capacity with extra high demands on quality and packaging savings.
All offered wrapping machines from the company EKOBAL are designed and manufactured in the Czech Republic by the parent company Pragometal. For their construction are used important electrical components from renowned European manufacturers.
25pal./hour
20programs
1200kilograms
Technical information

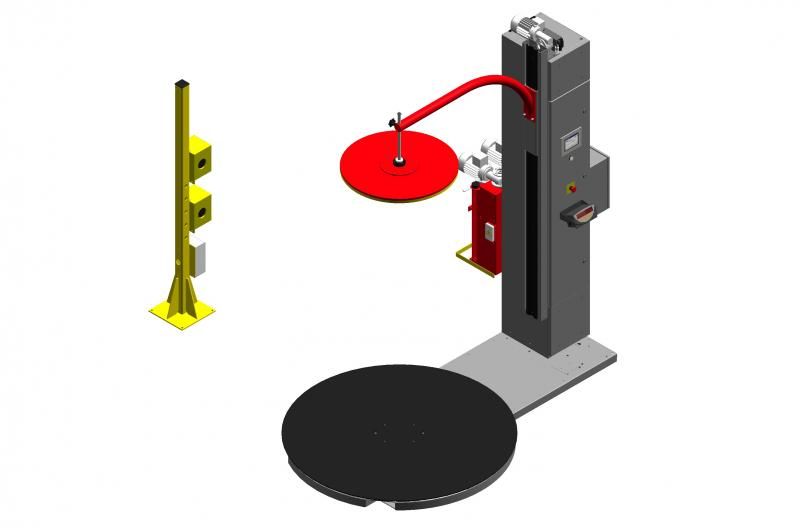

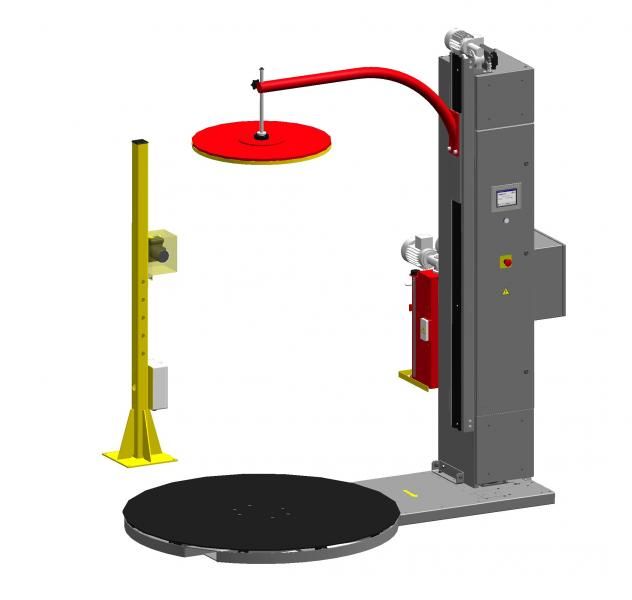

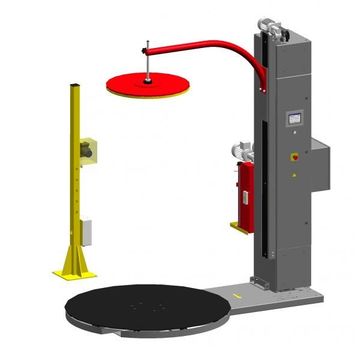

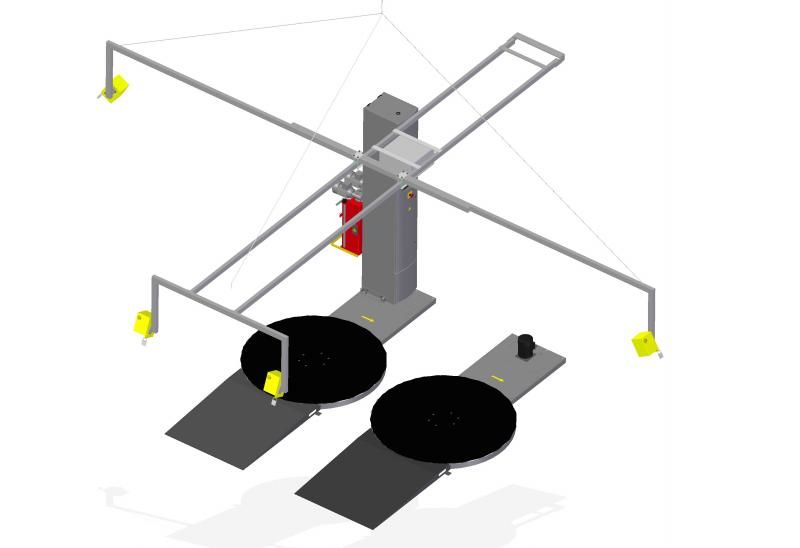

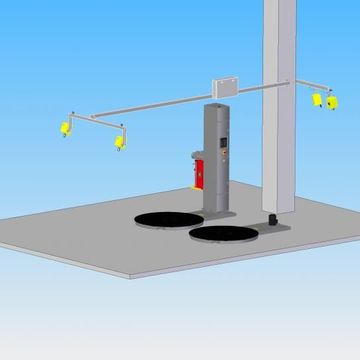

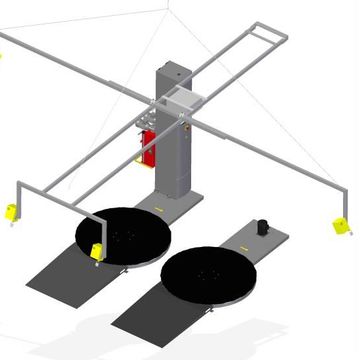

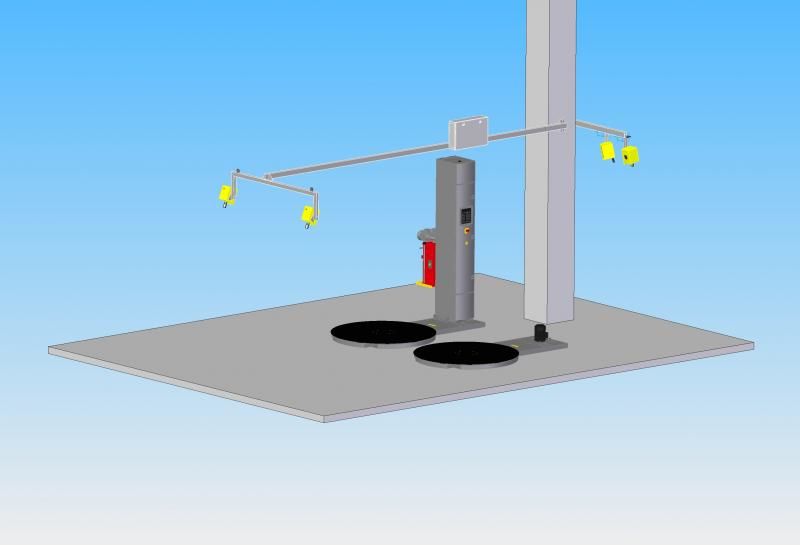

WMS EVIDENT is built on WMS PROFI platform, but there are special features added. This machine is able to take the picture of each side of pallet, before and after packing, saved it on integraqted PC or directly on your warehousing system under the pallet BAR code no.. So you have your evidence of wrapped pallet, picture included. You have the proofe of the well-wrapped pellet.
Whole cycle is activated same as wrapping cycle by button START, when is operator navigated by next steps shown on the LCD display.
Application
The machine is designed for operations with medium capacity of wrapped pallets, transporting valuable or fragile goods. Main customers are the logistics companies, which thanks to this machine with a perfect overview of all their deliveries, wrapping quality and content = weight.
| Wrapping capacity (pal./hour): | 25 |
| Turntable size (mm): | 1500 (EUR pallet) |
| Number of programs: | 20 |
| Max. wrapping height (mm): | 2430 |

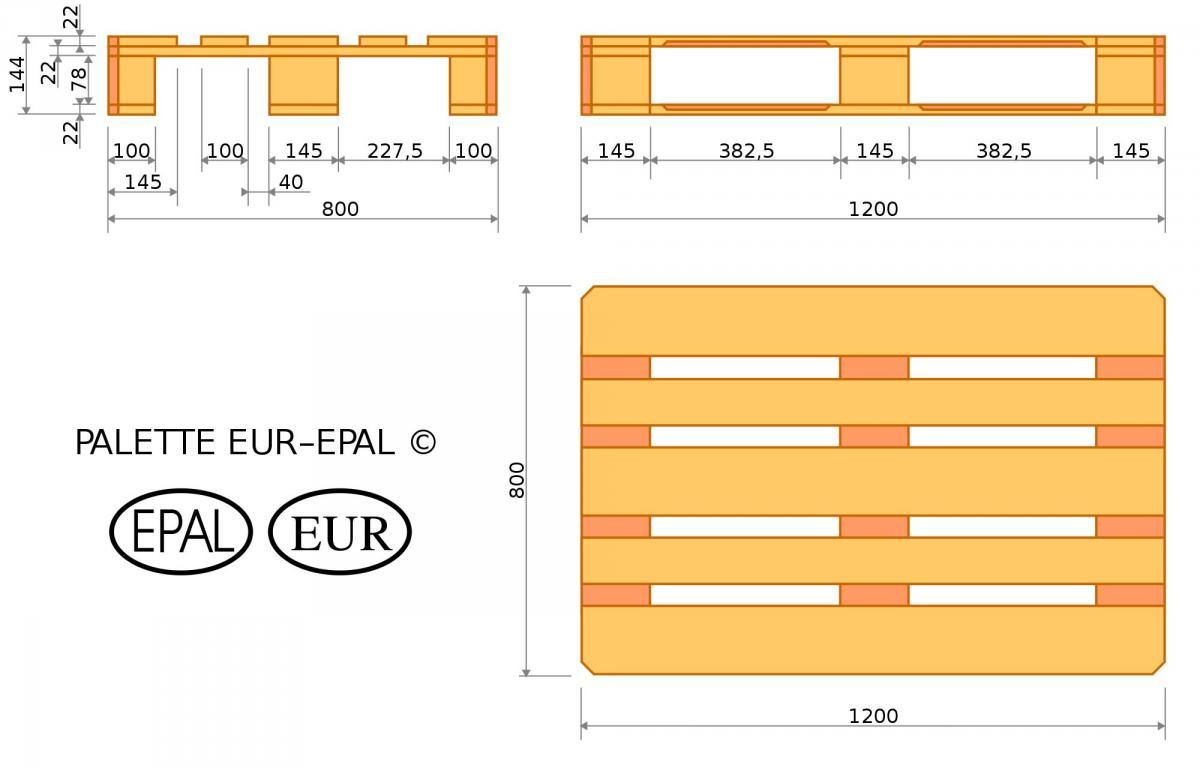

| Wrapped pallet size (mm): | 1200x800 |
| Pallet height reading: | Optical |
| Turntable speed regulation “Soft START“: | no or inverter |
| Pre-stretching device: | elmag. brake |
| Turntable speed (rpm): | 10 |
| Max. turntable load (kg): | 1200 |
| Machine dimensions LxW (mm): | 2350x1500 |
| Air pressure (MPa): | - |
| Operational voltage (V): | 3x400, 50Hz |
| Electric input (kVA): | 4,3 |
ACCESSORIES
Optional machine version
| Turntable size (mm): | 1650 (1200x1000), 1800 (1200x1200), 2300 |
| Increased of load capacity (kg): | 1500, 2500 |
| Extended column = max. wrapping height (mm): | 3130, 3630 |
| Pre-stretching foil device: | 1 el. motor controlled Light , 1 el. motor controlled, 2 el. motor controlled |
Accessories
- Regulation of turntable speed = soft start
- Approach ramp for turntable with scale - extended 1700mm
- Pit frame for machine integration into the floor
- Automatic foil tearing
- Electric top-platen for unstable goods
- Topsheet holder for hand application
- Non-standard color version
Video

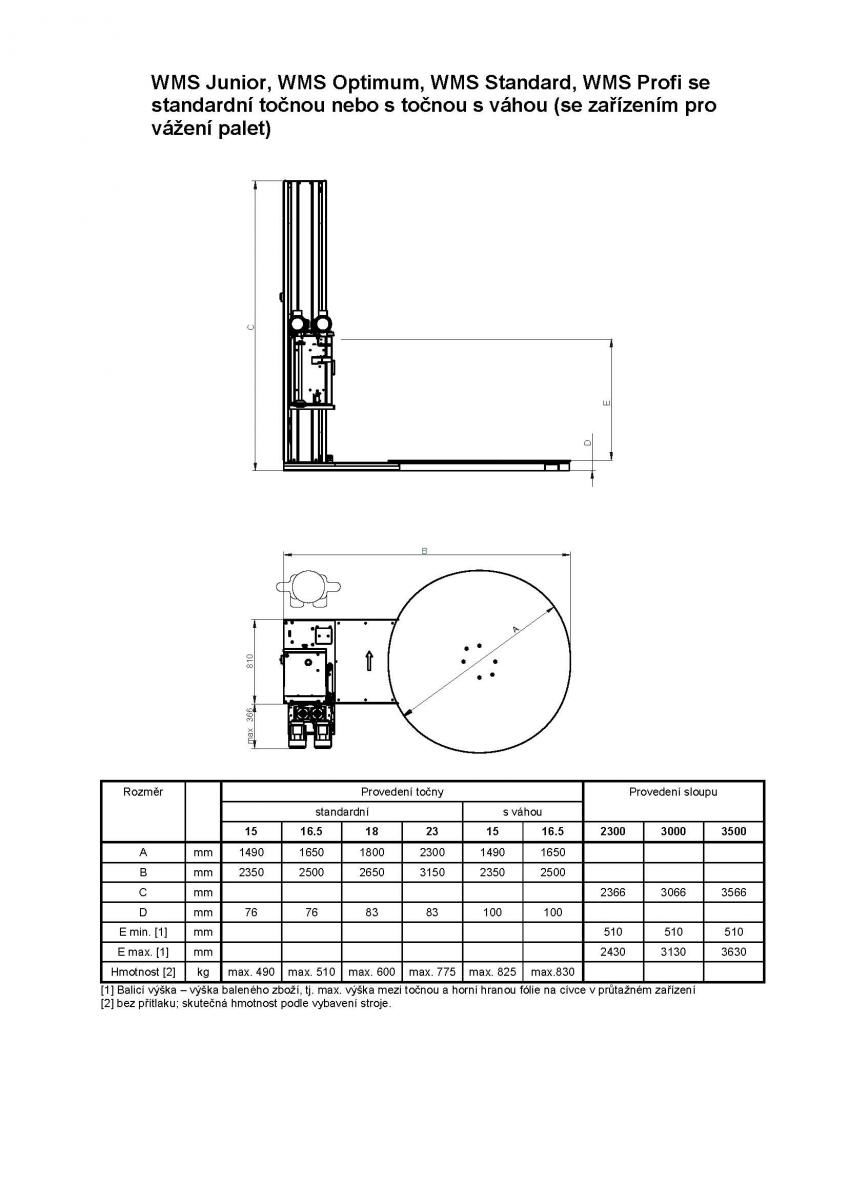

INSTALLATION LAYOUT
