Horizontal wrapperContipack

Horizontal wrapping machines are used mainly for packaging of goods on a large scale diameter and its length. Packaging in stretch foil perfectly protects the goods against mechanical damage and weather (against water, humidity, dust). It is suitable for applications with requirements on the great versatility of packaging and alternating assortment of goods, low cost and at the same time high quality packaging.

w x h x d programs kapacita balení (ks)
Request form
Ing.

Kontakt

Ondřej Frýbort
+420 234 144 154
ondrej.frybort@ekobal.cz

Technical information

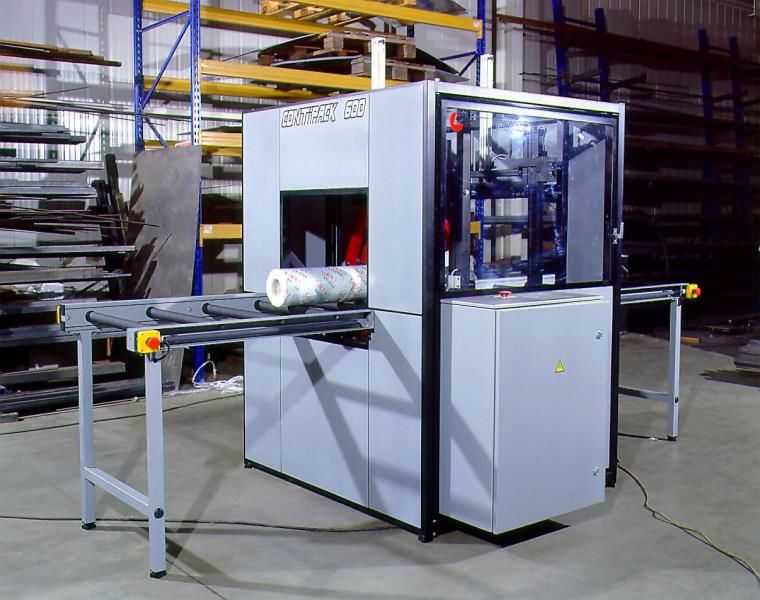

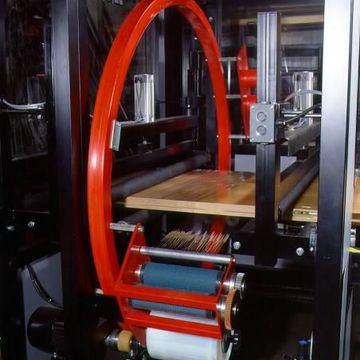

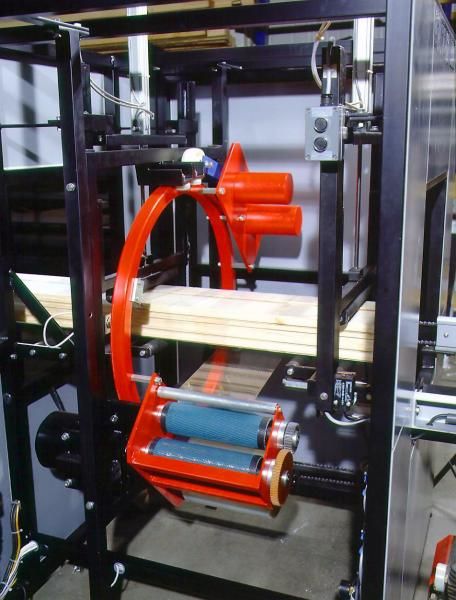

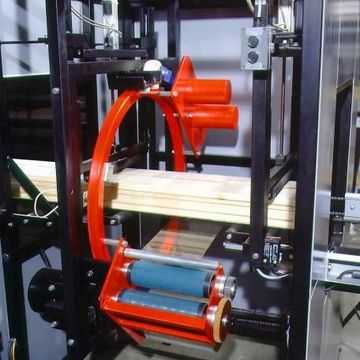

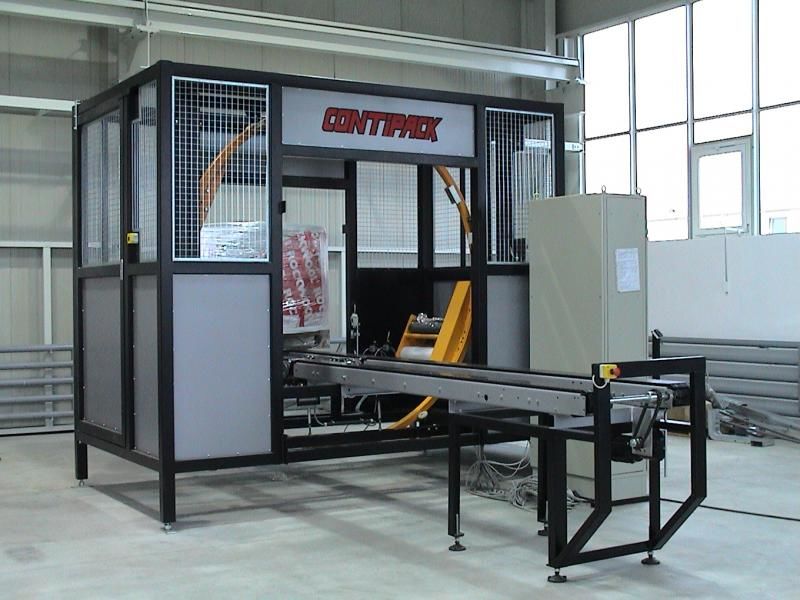

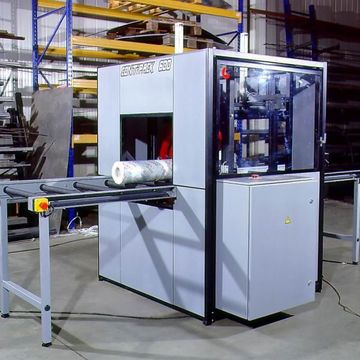

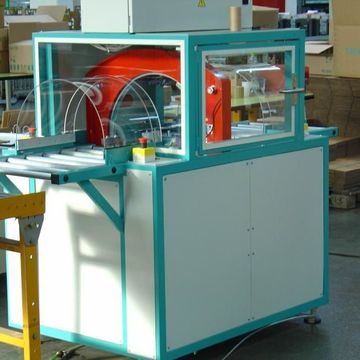

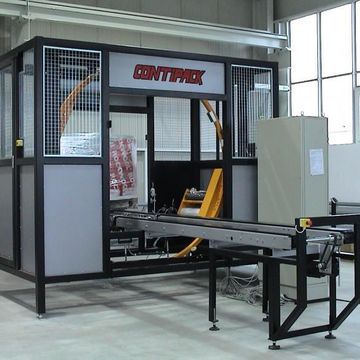

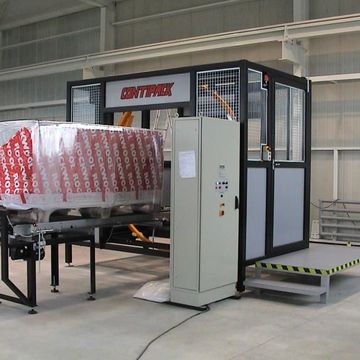

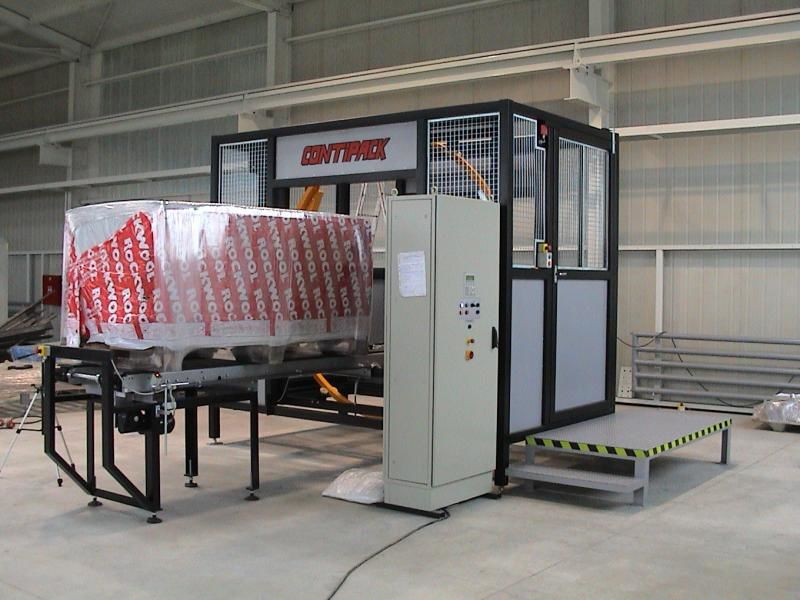

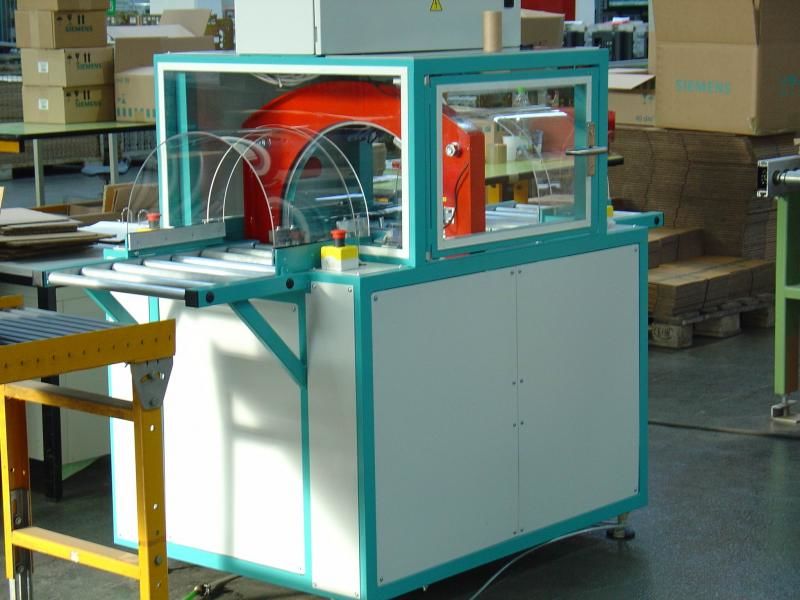

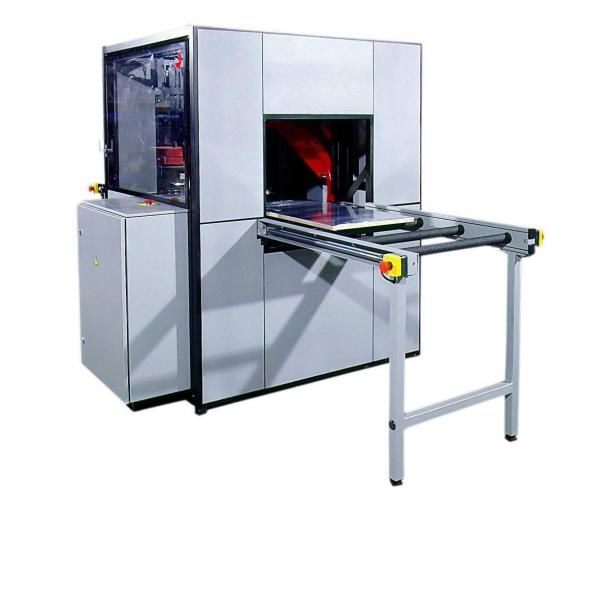

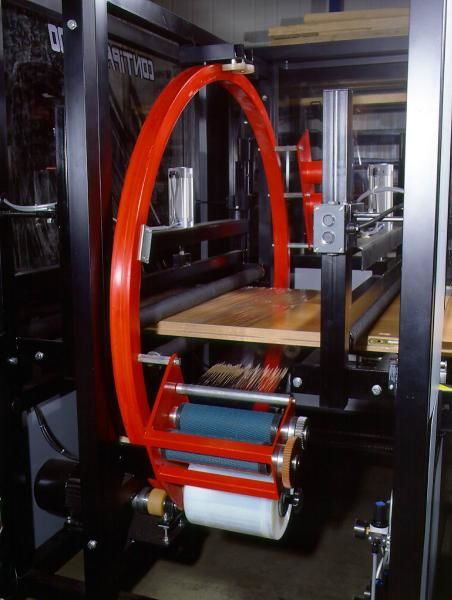

CONTIPACK is a wrapper with a horizontal axis of the wrapping, which is used for packaging in stretch foil. The common characteristic of packaged goods is the extensive length. Base of the machine is a cabinet with with a rotating ring, through its center is moved the packaged goods. The ring rotates together with pre-stretching device on which is attached a stretch foil roll. Goods are moved manually by operator or automatically by powered feeder.

Applications

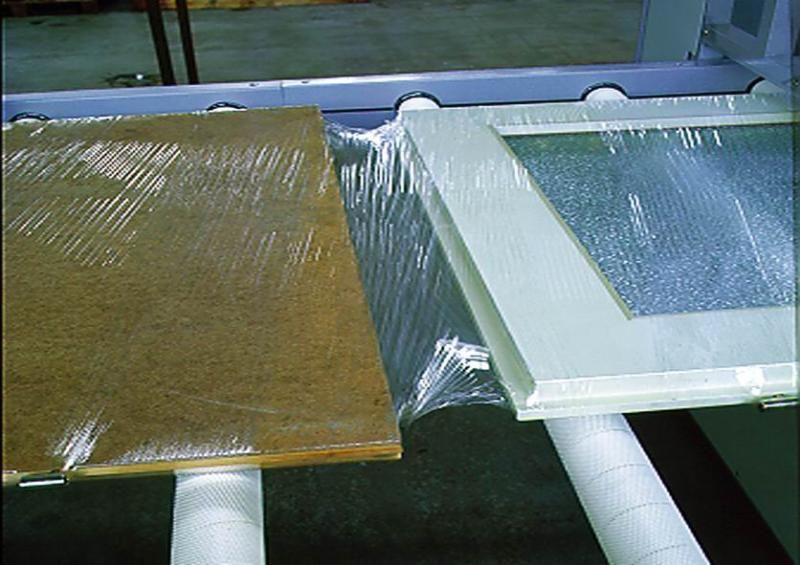

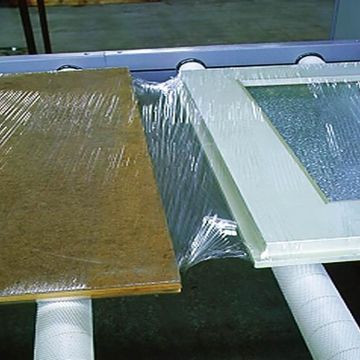

CONTIPACK machines find application wherever there is a need for high quality and waterproof wrap bundles of extrusions, panels, wooden boards, profiles, pipes, materials in rolls, paper rolls, carpets, or other material of similar nature. It can be used for wrapping of goods, such as doors, window sills, wall panels, sheets of different materials, and different parts of prefabricated units (eg furniture components, door jams).

Conveyor width (mm): 600

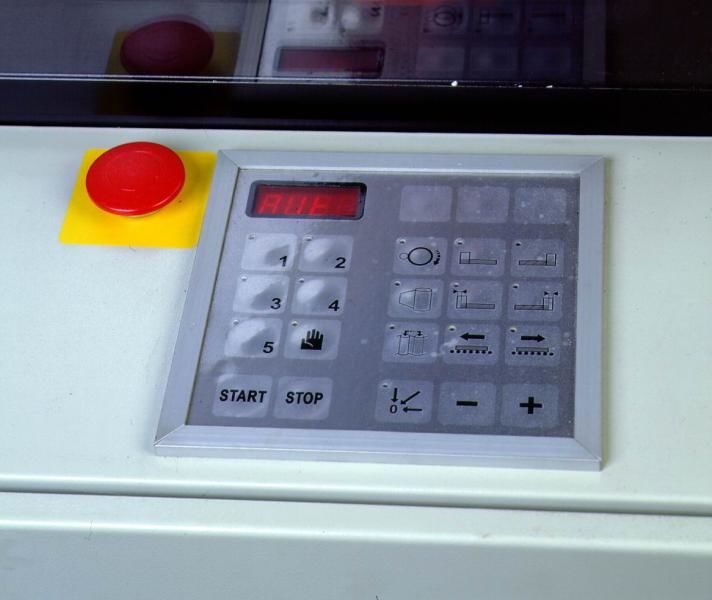

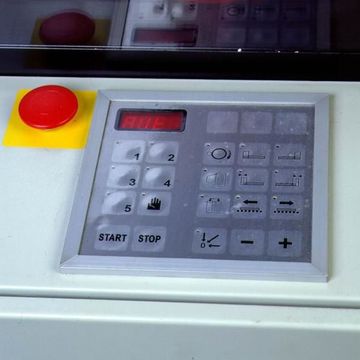

Number of programs: up to 20
Max. wrapping goods diagonal(mm): 500
Foil width (mm): 250
Pre-stretching device: hand brake
Min. goods length (mm): 800

Machine dimensions LxW (mm):

1200x1600 (without conveyor)
Air pressure (MPa): 0,6 - 1
Operational voltage (V): 3x400, 50Hz
Electric input (kVA): 2



ACCESSORIES

Optional machine version



Conveyor width (mm): 1000, 1400, 2000
Max. wrapping goods diagonal(mm): 500, 850, 1200, 2000
Pre-stretching device: mechanical, 1 el. motor controlled

Accessories

  • Conveyor rolls powered or gravitation
  • Automatic foil implementation and ending
  • Foil cutting for continuous wrapping
  • Pneumatic pressing device
  • Sensitive force regulation of pressure rollers
  • Electric ring centering to the axis
