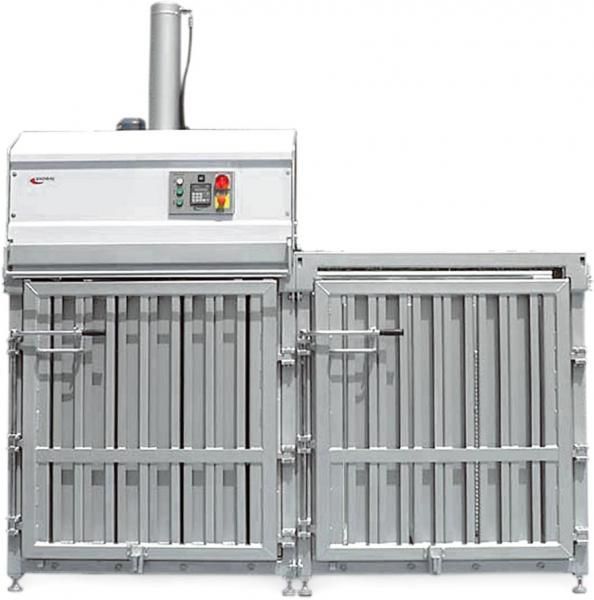

Hydraulic bale pressEKOPACK 300.2-E Profi

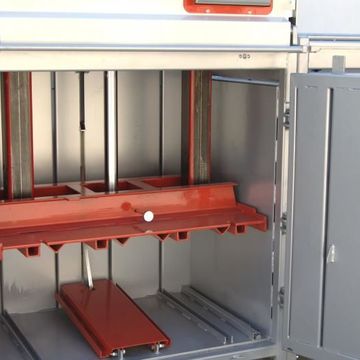

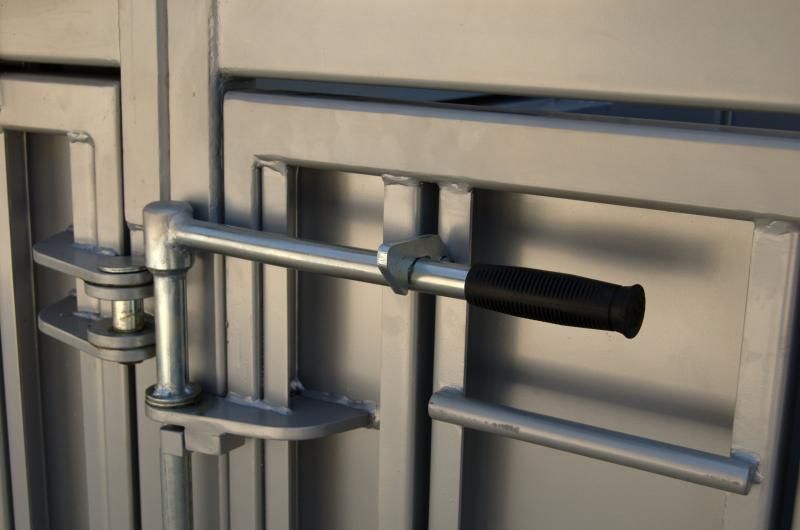

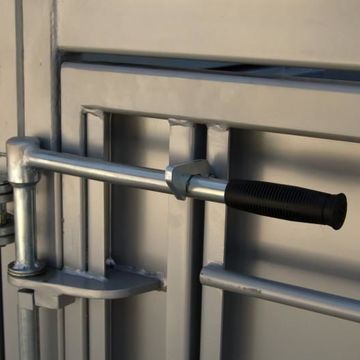

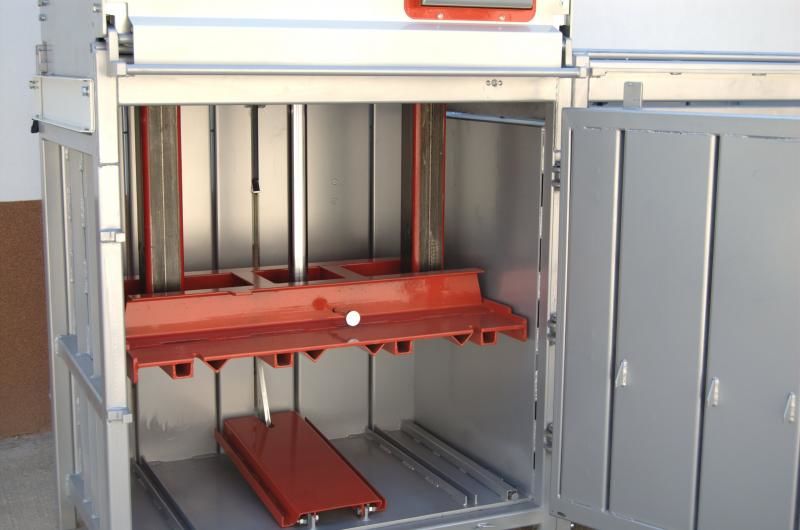

Chamber category bale press is designed with stable construction a fixed pressing chamber on which it is stored a sliding-over pressing head. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Press chamber is filled from the top after pressing head is moved to opposite position. The front door allows easy removal of the bale from chamber.

30lisovací síla (t) 400hmotnost paketu (kg) 1200x800x1050velikost paketu (mm)
Request form
Ing.

Kontakt

Soňa Kottová
+420 234 144 137
sona.kottova@ekobal.cz

Technical information

Bale press EKOPACK 300.2-E Profi is compared to version STANDARD equipped with powered side-to-side slidding pressing head that is simplifying operation bale press.

Hydraulic bale press with pressing force 30 tons and capacity to produce 1pallet (EUR) size bale. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Pressing chamber is filled from the top after pressing head is moved to opposite position. Front door allows easy removal of the bale from the pressing chamber. Design of the chamber allows lashing a bale in 4 places by PE strap or wire. Design of the chamber allows tiding a bale by PE strap or wire. allow more than 2 pressing chamber with use of only one pressing head (increasing production capacity and waste sorting with minimal purchase costs).

Application

Product is suitable for medim and large size companies and customers such as hypermarkets, shoppong malls, junk yards, warehouses, logistic companies, factories etc.

Maximum pressing force 30 t + 5 %
Press dimensions (LxWxH) (mm) 2680x1200x2920
Bale dimensions (LxWxH) (mm) 1200x800x1280
Bale weight (kg) maximum 500
Type of drive hydraulic
Surface pressure (kPa) maximum 320
Power input 3x400V/50Hz (kVA) 3,5
Number of pressing chambers 2
Number of binding slots 4
Pressing cycle time (s) 36
Electric protection IP 54
Press weight (kg) 2450

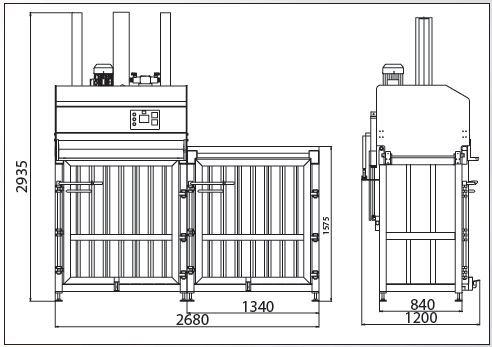

INSTALLATION LAYOUT

Download

Data sheet
