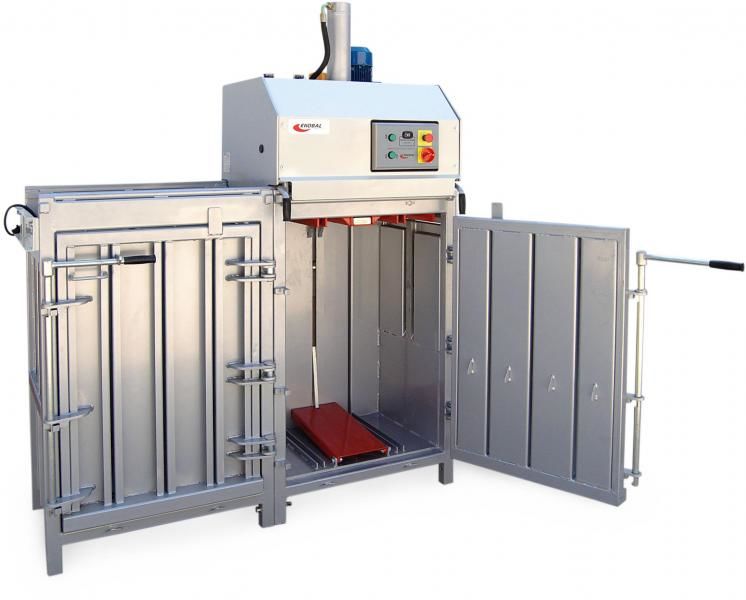

Hydraulic bale pressEKOPACK 200.1.2

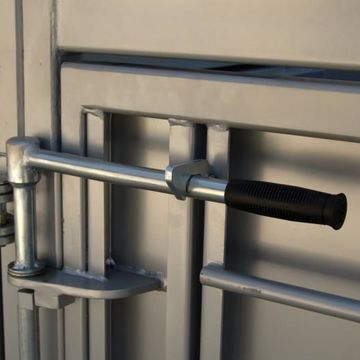

Chamber category bale press is designed with stable construction a fixed pressing chamber on which it is stored a sliding-over pressing head. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Press chamber is filled from the top after pressing head is moved to opposite position. The front door allows easy removal of the bale from chamber.

20lisovací síla (t) 220hmotnost paketu (kg) 1170x700x700velikost paketu (mm)
Request form
Ing.

Kontakt

Soňa Kottová
+420 234 144 137
sona.kottova@ekobal.cz

Technical information

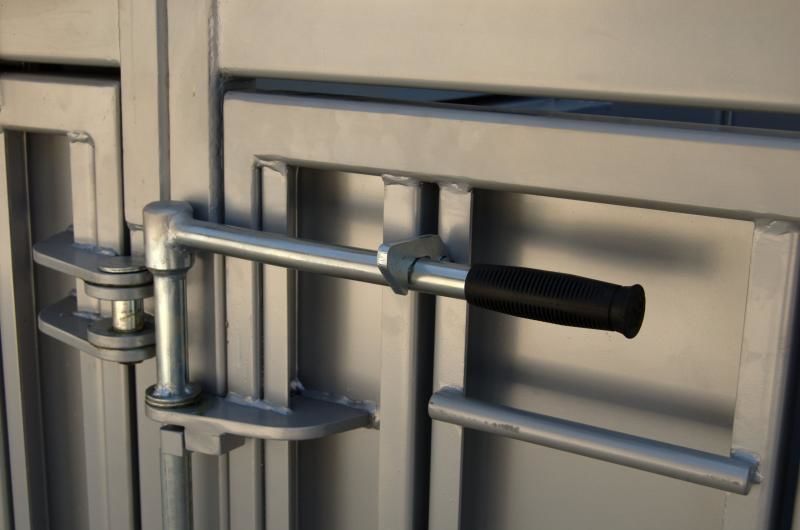

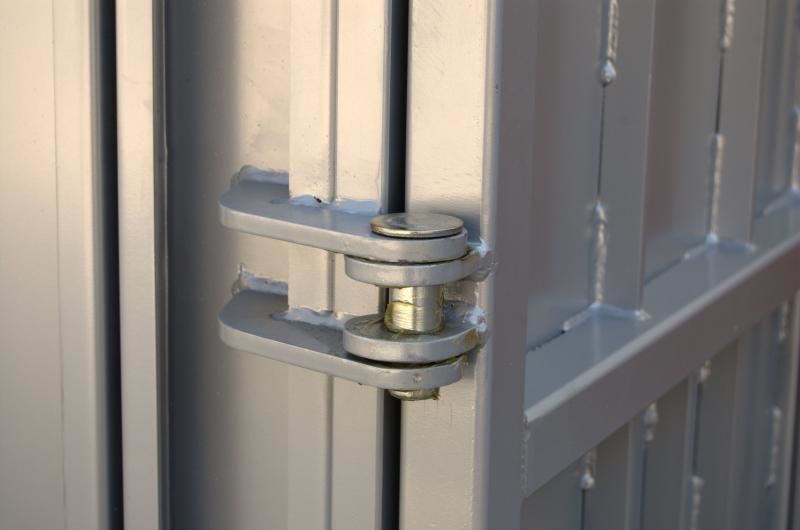

Hydraulic bale press with pressing force 20 tons and capacity to produce 1pallet (EUR) size bale. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Pressing chamber is filled from the top after pressing head is moved to opposite position. Front door allows easy removal of the bale from the pressing chamber. Design of the chamber allows lashing a bale in 4 places by PE strap or wire. Bale press is designed to have multiple pressing chambers within one unit with only one the pressing head (increasing production capacity and waste sorting with minimal purchase costs).

Application

Product is suitable for medim and large size companies and customers such as hypermarkets, junk yards, warehouses, logistic companies, factories etc.

Maximum pressing force 20 t ± 10 %
Press dimensions (LxWxH) (mm) 2430x990x2535
Bale dimensions (LxWxH) (mm) 1100x700x(500–700)
Bale weight (kg) maximum 220
Type of drive hydraulic
Surface pressure (kPa) maximum 259
Power input 3x400V/50Hz (kVA) 3
Number of pressing chambers 1 and more
Number of binding slots 4
Pressing cycle time (s) 20
Electric protection IP 54
Press weight (kg)

1chamber - 1190

2chambers - 1650



ACCESSORIES

  • Additional chamber EKOPACK 200
