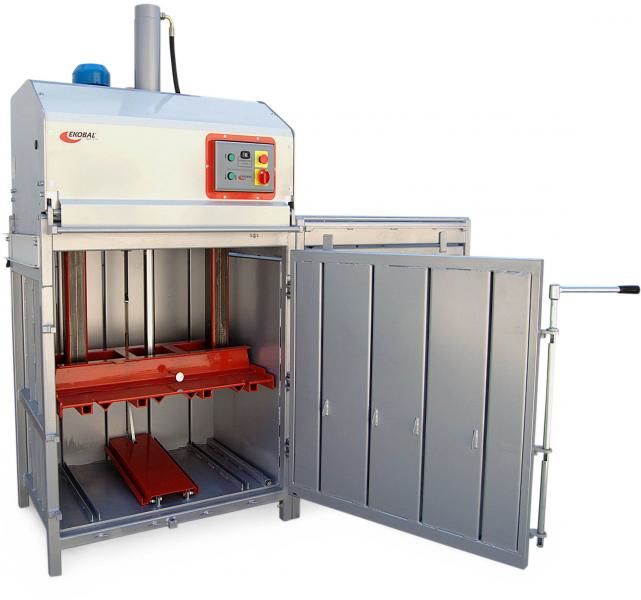

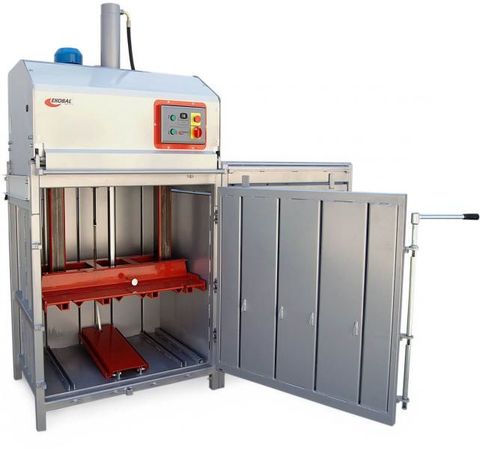

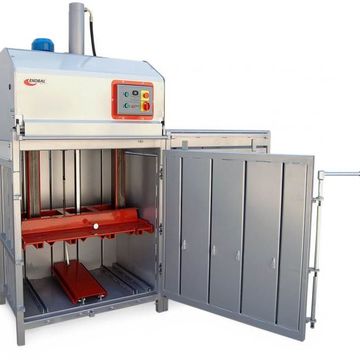

Hydraulic bale pressEKOPACK 100.1.2

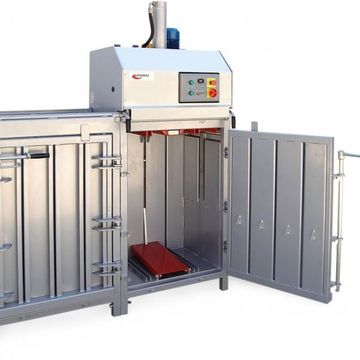

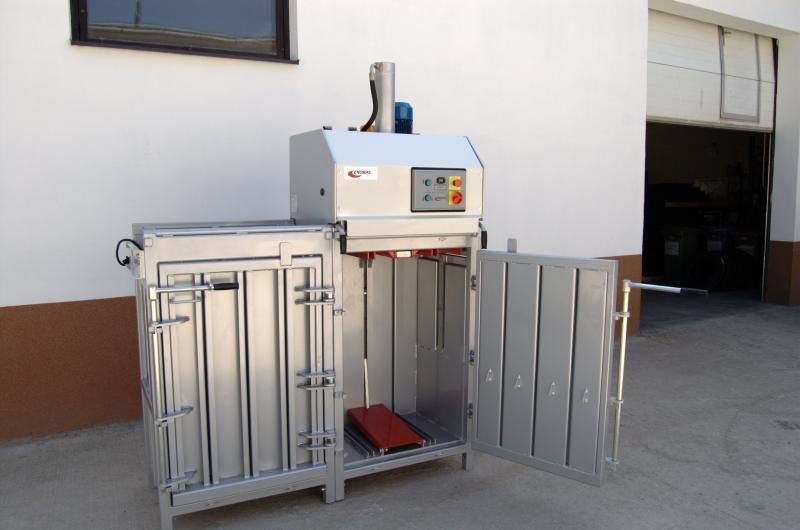

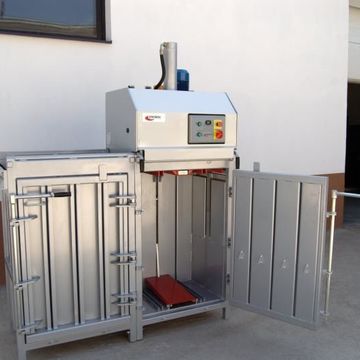

Chamber category bale press is designed with stable construction a fixed pressing chamber on which it is stored a sliding-over pressing head. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Press chamber is filled from the top after pressing head is moved to opposite position. The front door allows easy removal of the bale from chamber.

10lisovací síla (t) 150hmotnost paketu (kg) 800x600x700velikost paketu (mm)
Request form
Ing.

Kontakt

Soňa Kottová
+420 234 144 137
sona.kottova@ekobal.cz

Technical information

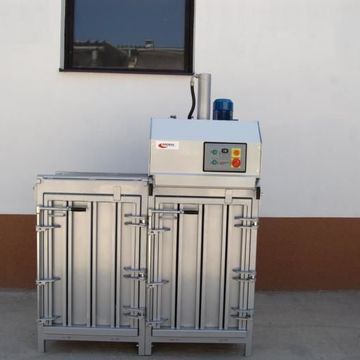

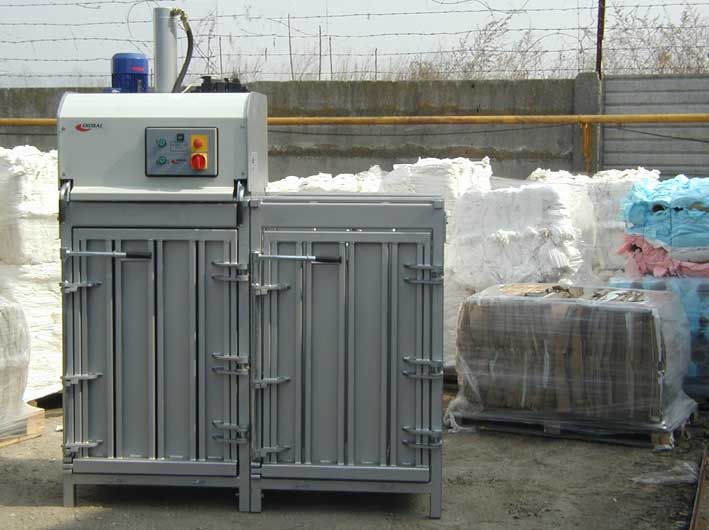

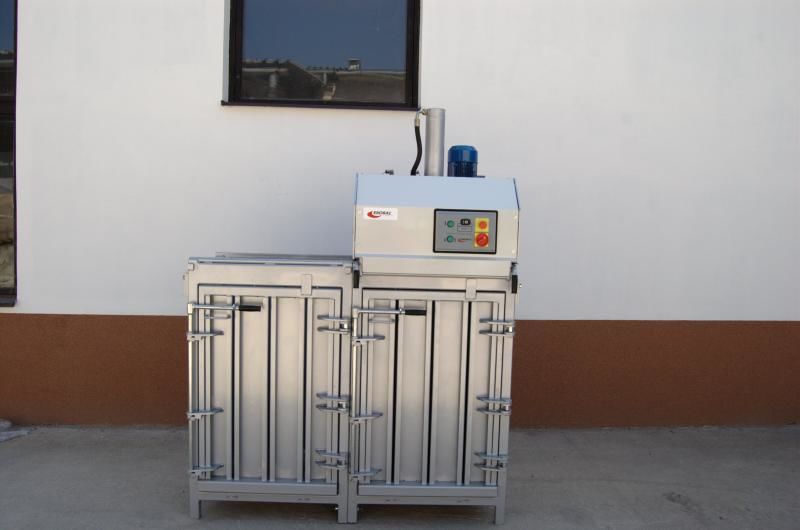

Hydraulic bale press with pressing force 10 tons. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Pressing chamber is filled from the top after pressing head is moved to opposite position. Front door allows easy removal of the bale from the pressing chamber. Design of the chamber allows lashing a bale in 3 places by PE strap or wire. Design of the chamber allows tiding a bale by PE strap or wire. allow more than 2 pressing chamber with use of only one pressing head (increasing production capacity and waste sorting with minimal purchase costs)

Application

Product is suitable for small, middle and also for big size companies and organizations such as supermarkets, junk centre, stocks, factories, warehouses etc.

Maximum pressing force 10 t ± 10 %

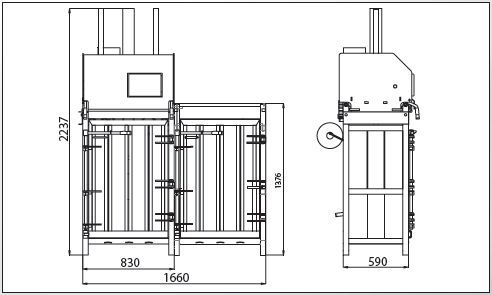

Press dimensions (LxWxH) (mm) 1730x710x2240
Bale dimensions (LxWxH) (mm) 800x600x(500–700)
Bale weight (kg) maximum 150
Drive hydraulic
Surface pressure (kPa) maximum 208
Power input 3x400V/50Hz (kVA) 1,1

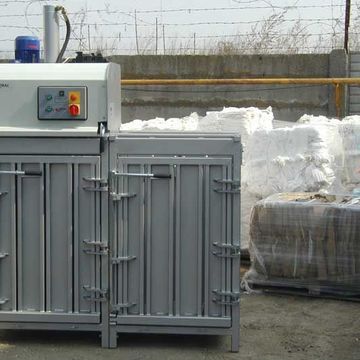

Number of pressing chambers 1 or more
Number of binding slots 2
Pressing cycle time (s) 20
Electric protection IP 54
Press weight (kg)

1chamber - 650

2chambers - 920



ACCESSORIES

  • Retaining mechanism (reverse function of pressed waste)
  • Additional chamber EKOPACK 100
